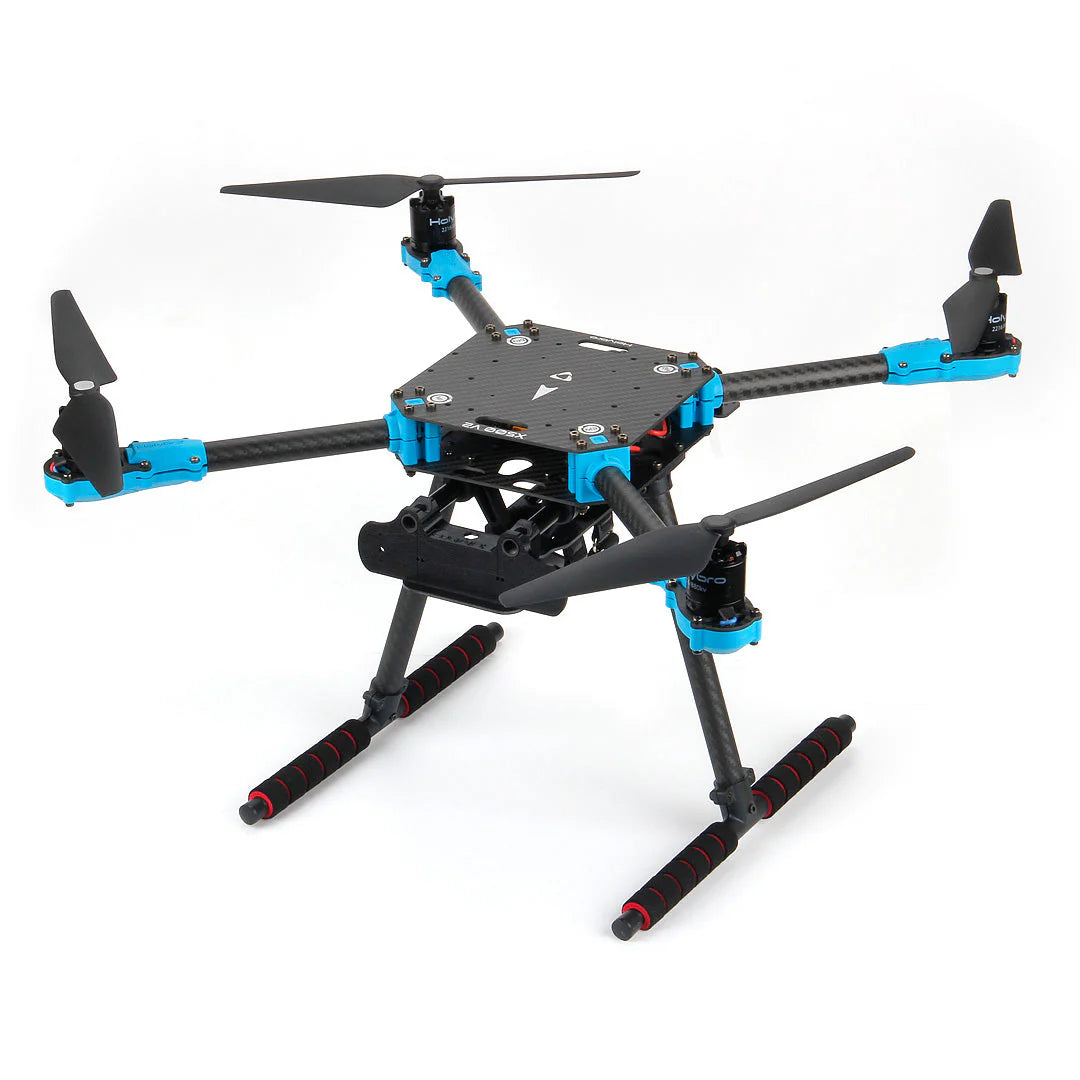

Holybro X500 V2 Kits

Kit Contents

dxc vbn

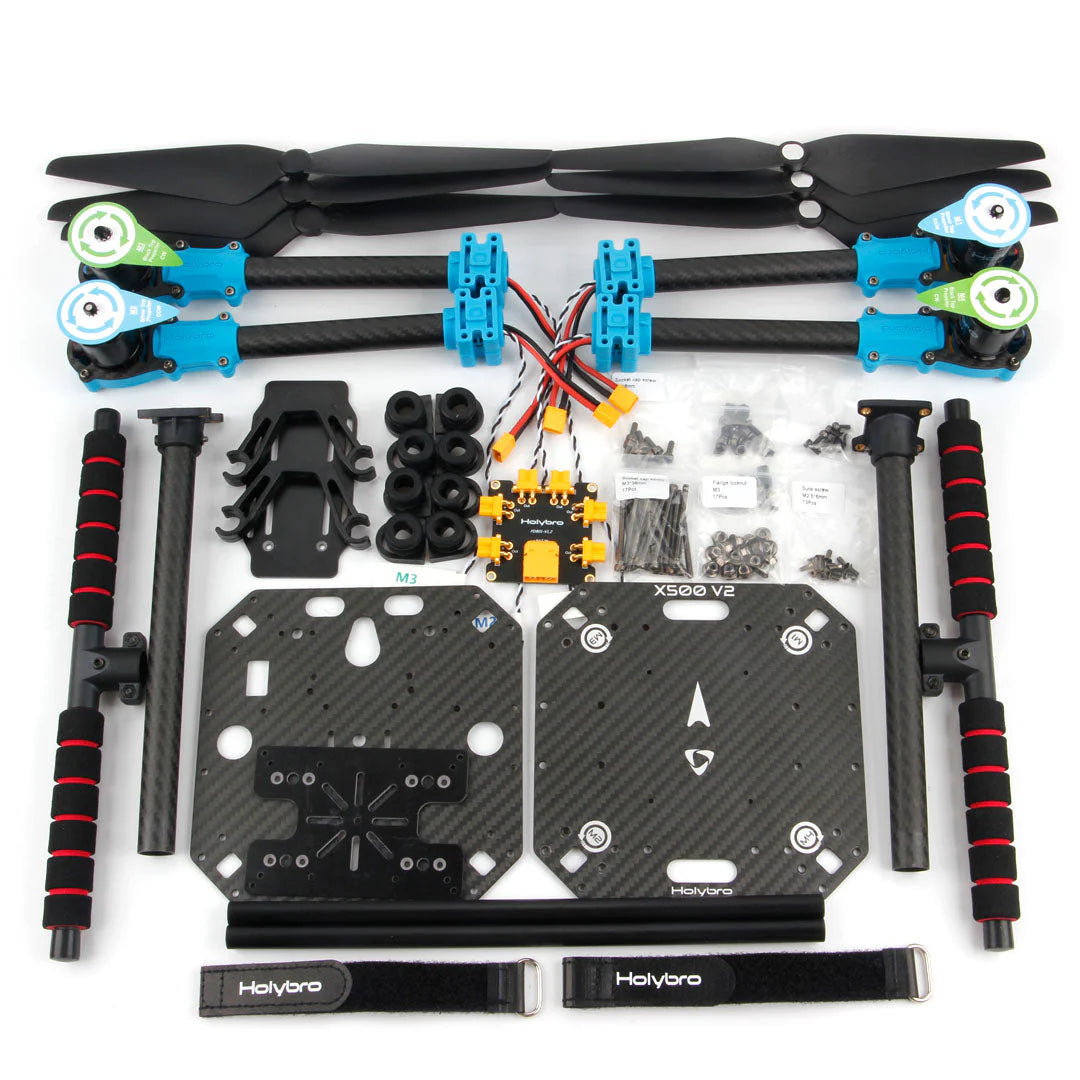

X500 V2 ARF Kit:

• X500 V2 Frame Kit
• With Preinstalled Items:
• Motors - Holybro 2216 KV920 Motor (4 pcs) with XT30 Plug
• ESCs - BLHeli S ESC 20A (4 pcs)
• 1045 Propellers (6 pcs)

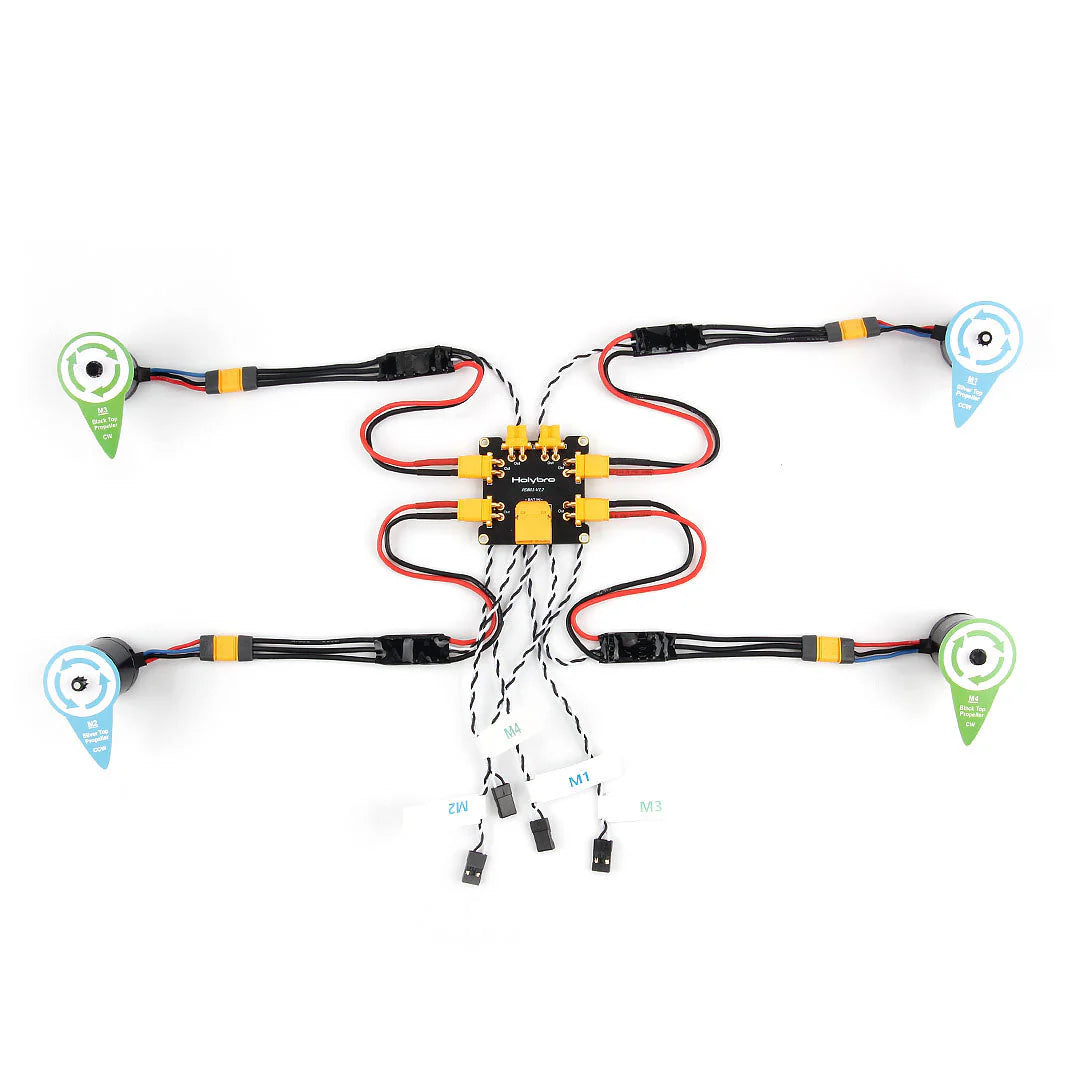

• Power Distribution Board – XT60 plug for battery & XT30 plug for ESCs & peripherals
• Note: Depth camera mount is sold separately.

X500 V2 Frame kit details

• Body - Full Carbon Fiber Top & Bottom plate (144 x 144mm, 2mm thick)

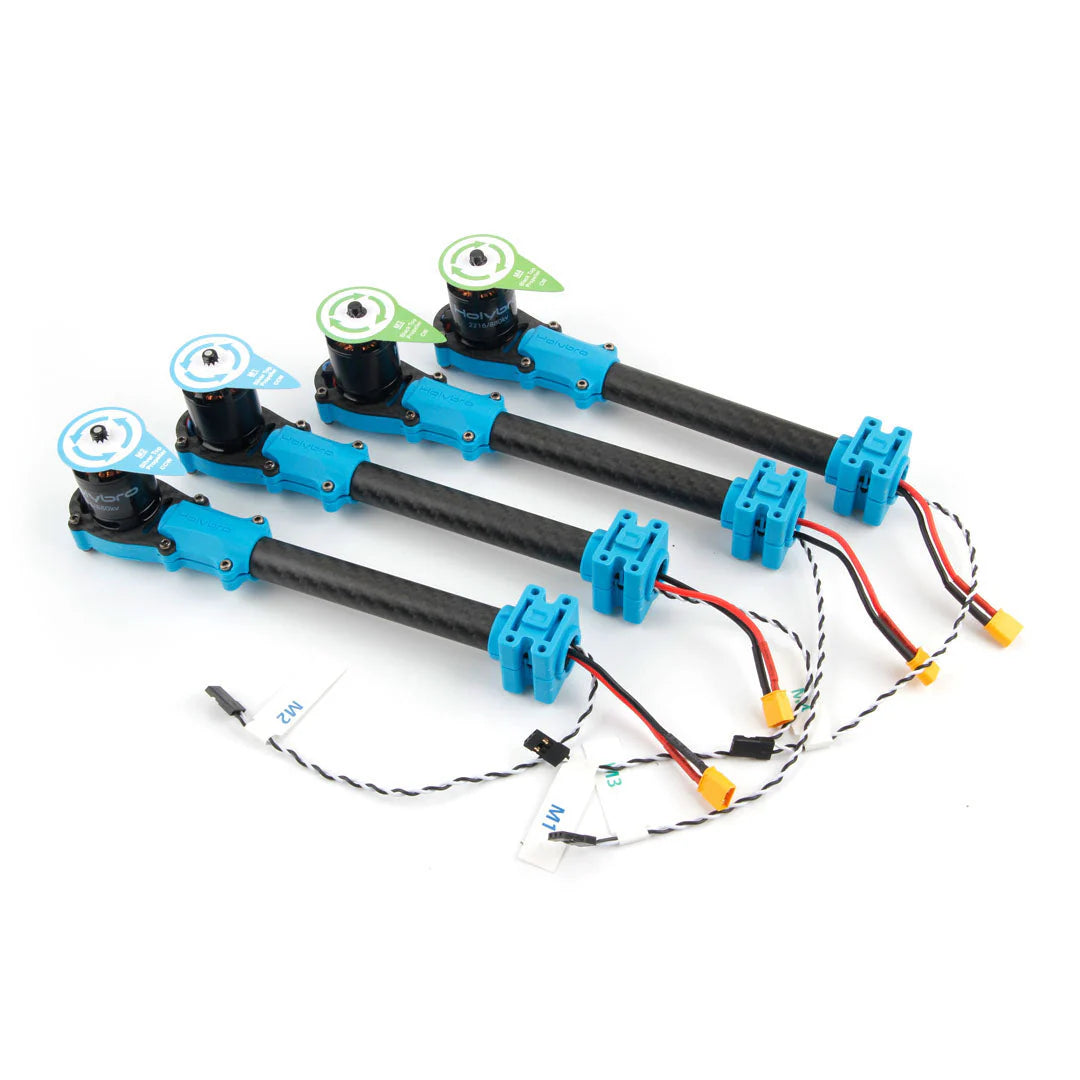

• Arm - High strength & ultra-lightweight 16mm carbon fiber tubes with newly designed fiber reinforced nylon connectors
• Landing gear - 16mm & 10mm diameter carbon fiber tubes with strengthened & improved plastic tee connectors.
• Platform board - With mounting holes for GPS & popular companion computer such as the Raspberry Pi 4 & Jetson Nano
• Dual 10mm Ø rod x 250 mm long rail mounting system
• Battery mount with two Battery Straps
• Hand tools for installation

Mechanical Specification:

• Wheelbase: 500mm
• Motor mount pattern: 16x16mm & 19x19mm
• Frame Body: 144x144mm, 2mm thick
• Landing gear height: 215mm
• Space between top and bottom plates: 28mm
• Weight: 610g
• Flight time: ~18 minutes hover with no additional payload. Tested with 5000mAh Battery.
• Payload: 1500g (without Battery, 70% Throttle)
• Battery Recommendation: 4S 3000-5000mAh 20C+ with XT60 Lipo Battery (Not Included)
